HP iLo 4 Weak Hashing Algorithm Patch#

Default format these servers have SSL Certificate Signed Using Weak Hashing Algorithm.

To fix this we need to upload self signed certificates that are signed with a stronger algorithm.

Note

Change Common name to the ip of the server you are generating the certificate for

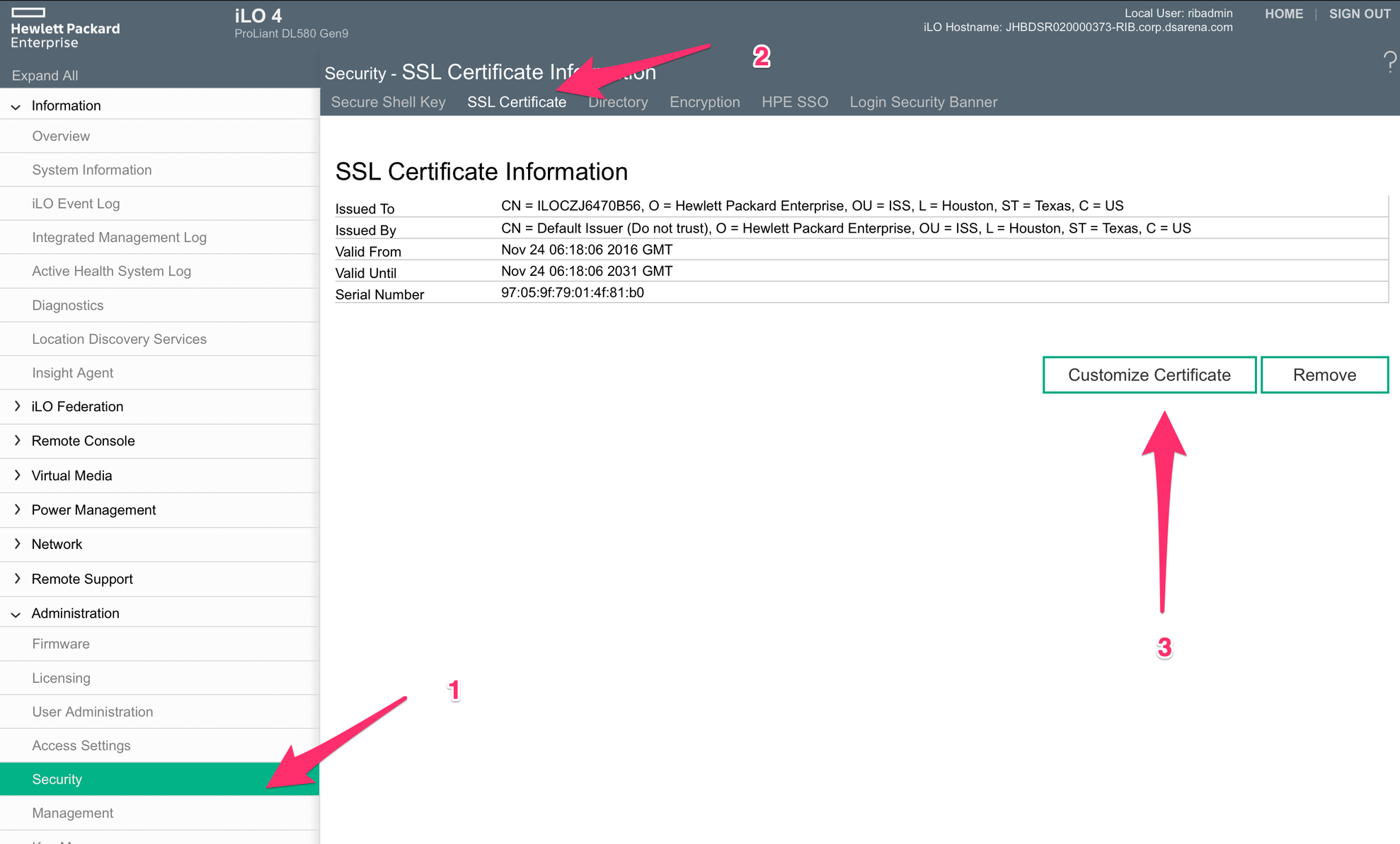

  • Click on “Administration” > “Security”
  • Click on “SSL Certificate“

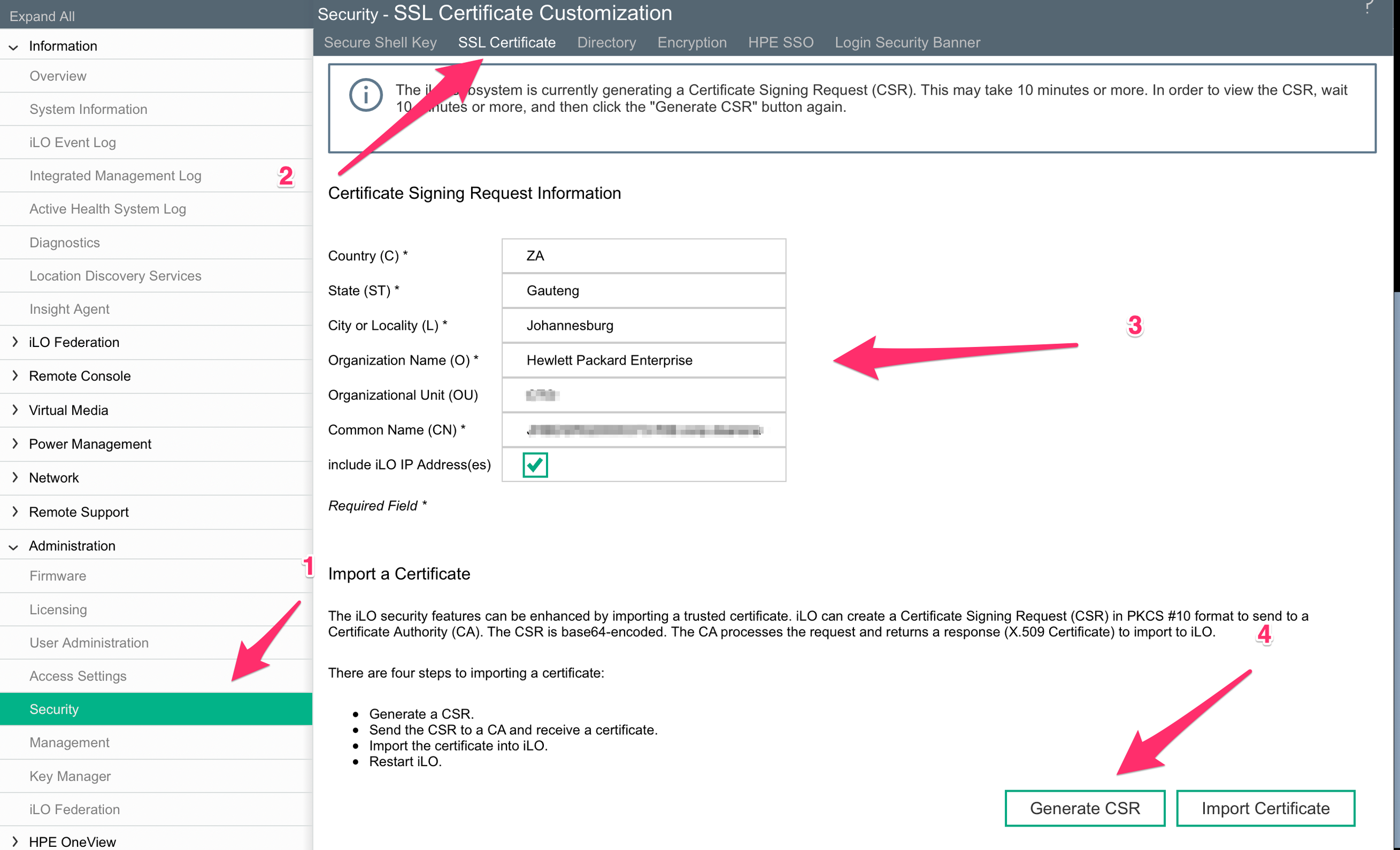

  • Update the details of the certificate
  • Click on “Generate CSR”
  • Wait 10 minutes and then Click on “Generate CSR”


After 10 minutes when you click on Generate CSR again a pop up block will appear. Copy this certificate to a file.


Test Certificate#

Note

Change 373.csr with them name you saved from above.

openssl req -in 373.csr -text -noout | grep -i "Signature.*SHA256" && echo "All is well" || echo "This certificate will stop working in 2017! You must update OpenSSL to generate a widely-compatible certificate"

The results should show

Tip

All is well

Import Certificate#

  • Go to the iLo4 web interface.
  • Click on ""Administration" > "Security"
  • Then Click on SSL Certificate

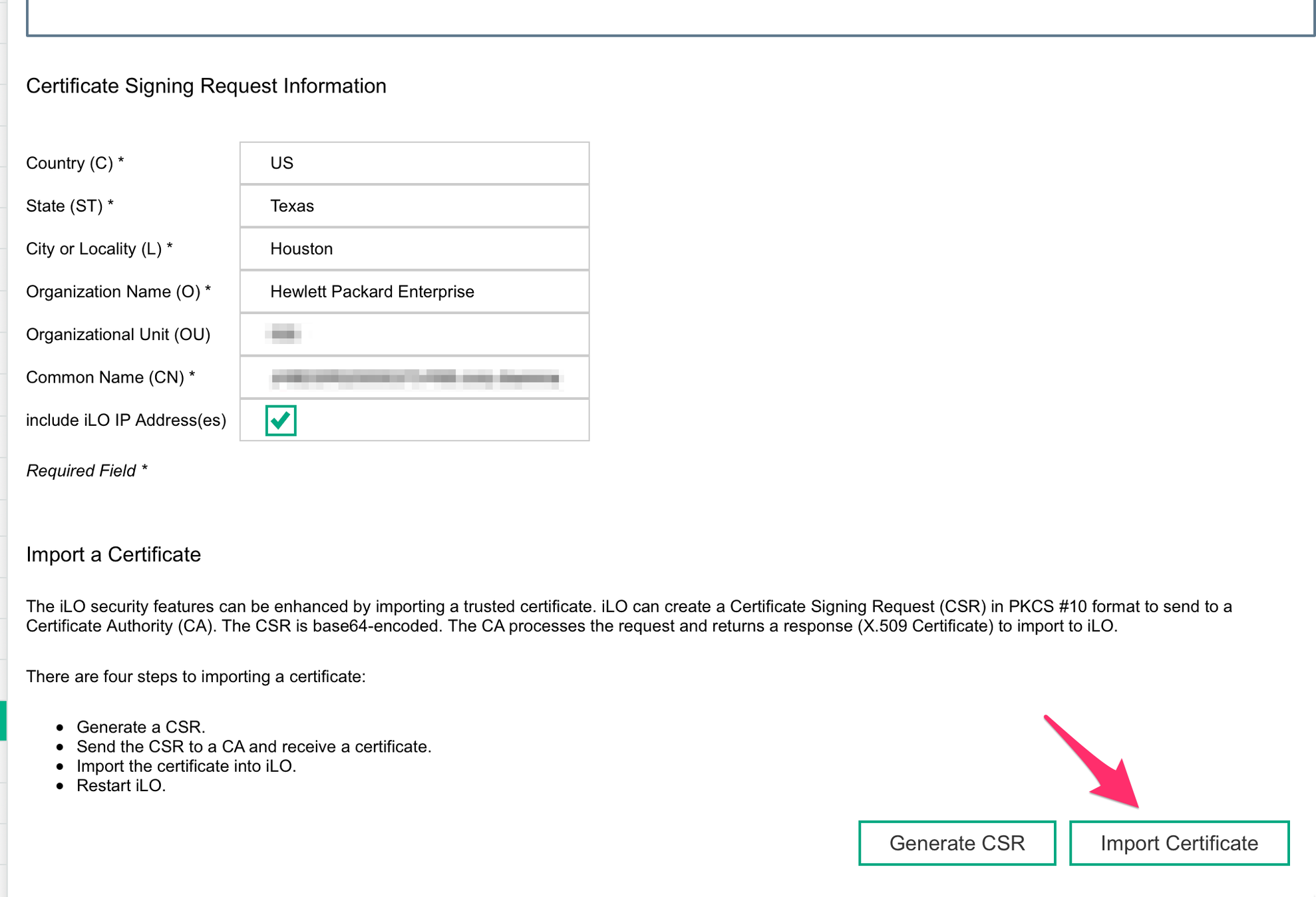

  • Click on “Custom Certificate“


Click on Import certificate.


Paste the CSR from your clipboard and click on “Import”.

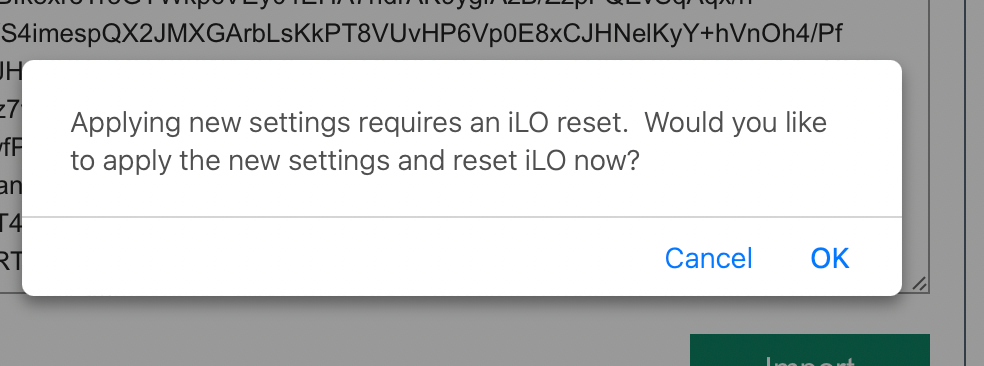

Now the iLo interface will restart.


Reset iLO#

Now reset iLo to apply.

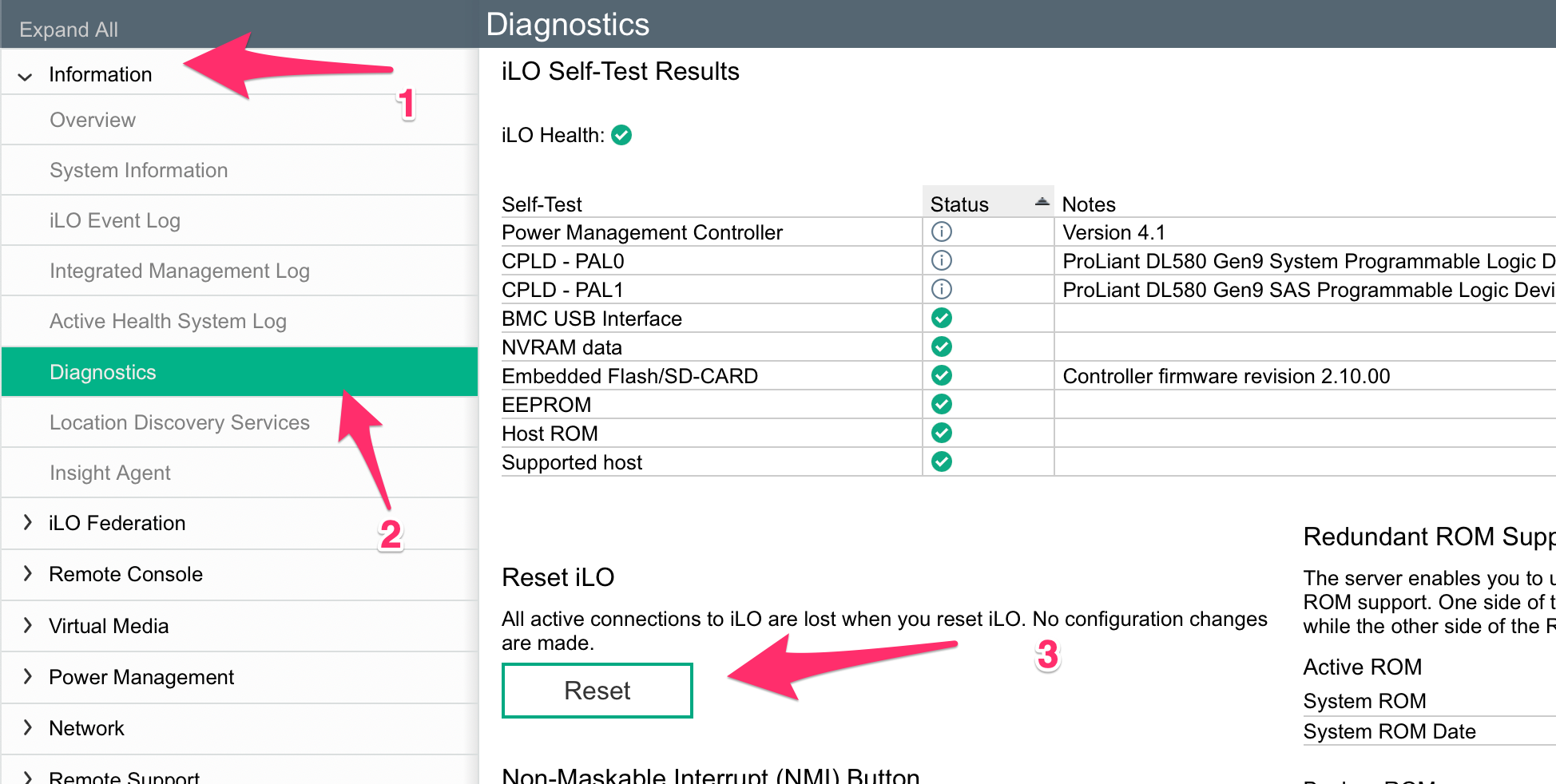

  • Click on “Information“ > “Diagnostics“.
  • Click on Reset.
